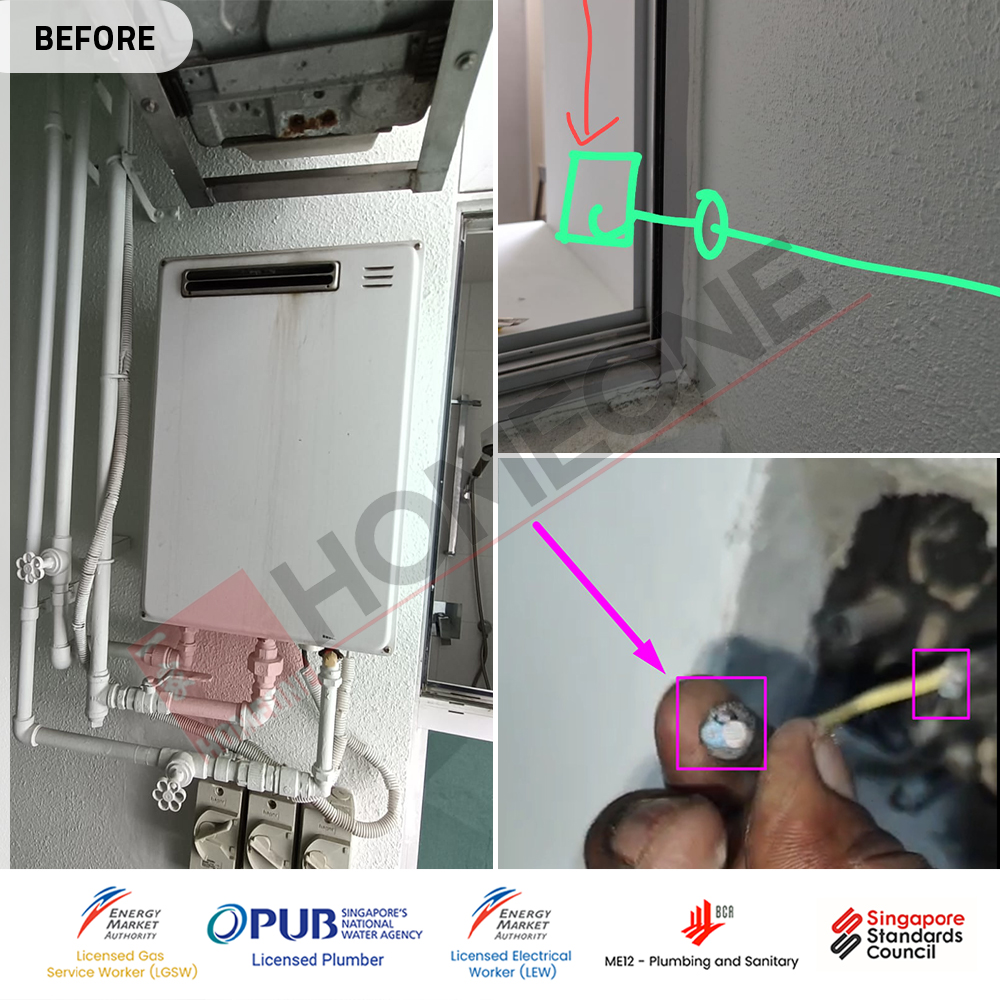

Woodsville 28, Potong PasirAt Woodsville 28, the homeowner reached out to Homeone after experiencing repeated hot water disruptions from their ageing gas heater. The issue was first noticed when the control panel display went blank, accompanied by unstable operation and inconsistent hot water supply.
Concerned about whether the problem was caused by a faulty control panel, communication cable, or an internal heater fault, the homeowner requested a professional site assessment to determine the root cause and assess if repair was still viable. Given the age of the unit and increasing frequency of breakdowns, a full inspection was necessary to ensure safety and reliability.
During our on-site assessment, our licensed gas service team identified multiple internal faults affecting both the control system and the heater’s core components.
Key findings included:

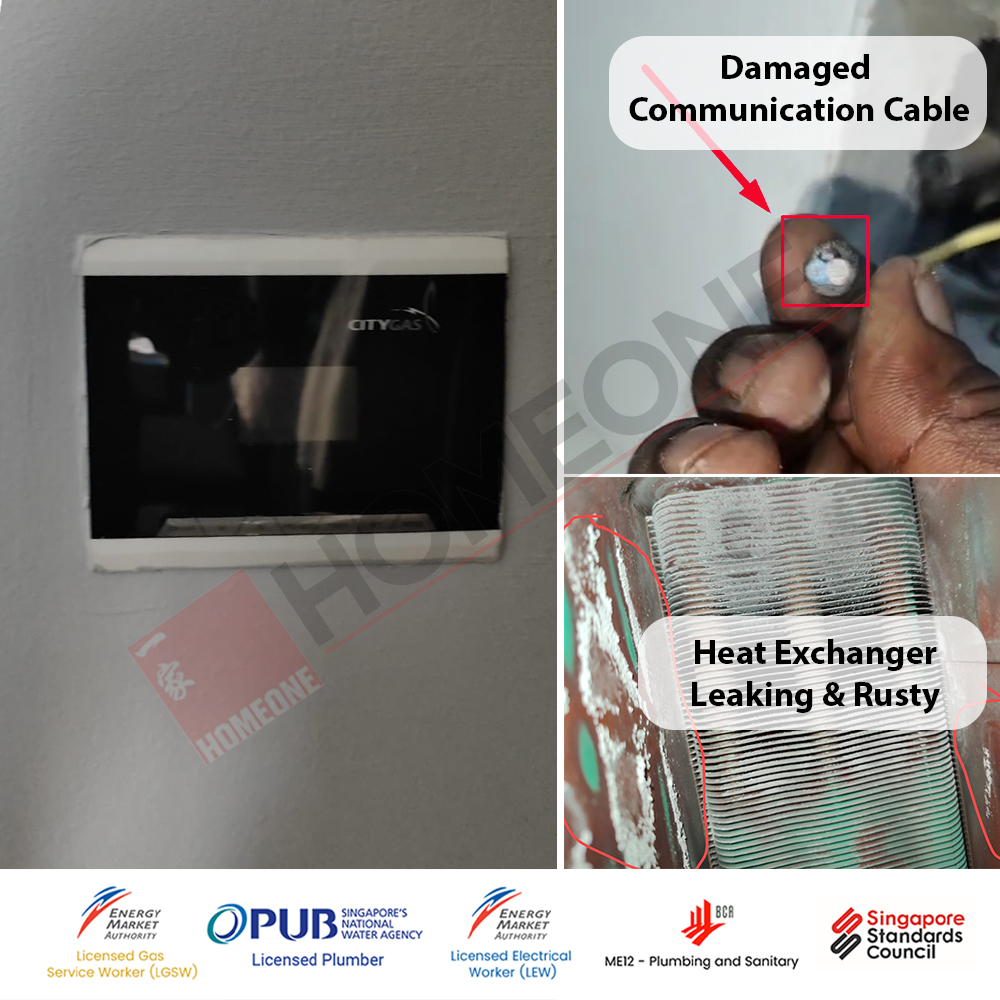

Broken communication cable between the Gas heater and the control panel due to long-term wear and tear
Control panel no display issue caused by loss of signal from the heater

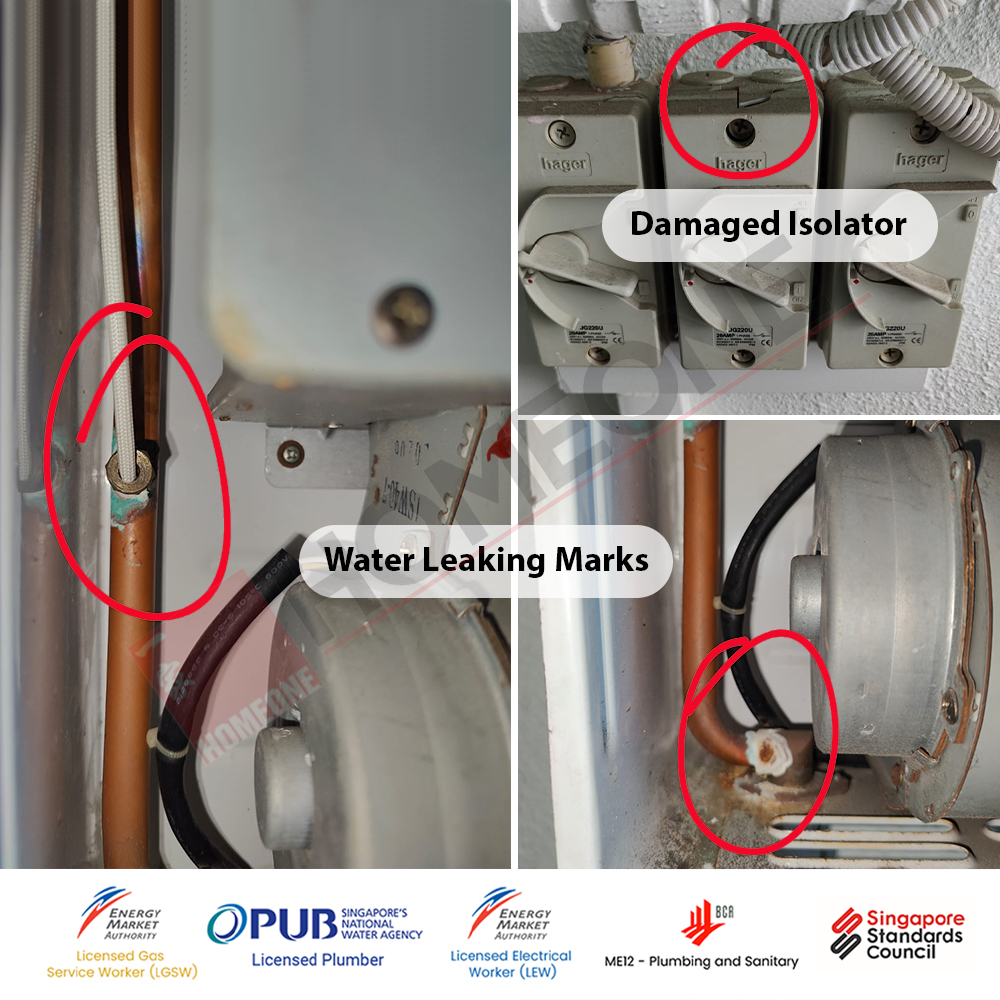

Internal water pipe leakage marks inside the tank
Heat exchanger showing signs of leakage and rust, indicating advanced corrosion
These internal leaks are not externally visible but can worsen over time, leading to further damage, unstable ignition, and safety risks. As the heat exchanger and internal piping are sealed components, repairs are not cost-effective or technically reliable at this stage.
After explaining the findings clearly to the homeowner, we presented the following options:
Temporary control panel troubleshooting (not recommended due to internal leaks)
Partial repair attempts with no long-term reliability
Full City Gas heater replacement with a newer, compliant model for long-term safety and performance
This gas heater had reached the end of its service life, with multiple critical components failing at the same time. The combination of a control panel display issue, internal pipe leaks, and a rusted heat exchanger indicates overall system deterioration rather than a simple electrical fault.
In simple terms, the heater can no longer operate safely or reliably. For safety and compliance reasons, continued use was not advisable. The homeowner proceeded with a full replacement, restoring a stable hot water supply and long-term peace of mind.
A control panel no display issue on a gas or water heater is usually a sign of an internal communication or electrical fault. The most common causes include:
Communication cable fault – Damaged or loose cable prevents signals from reaching the control panel.
Faulty or melted motherboard – Internal electrical damage stops the system from powering the display.
Control panel defect – Manufacturing faults can cause the display to fail completely.
These issues usually require a professional assessment to confirm whether repair or replacement is needed.
24/7 Gas Water Heater Advice
💬 We help you choose the ideal heater
If your gas heater suddenly shows no display, it usually indicates a power supply or control board (PCB) issue — meaning the heater is not starting up.
Wall switch
Ensure the wall switch is ON. A switched-off point can cause a blank display.
Power isolator
Check for power at the isolator. Without supply, the panel will not light up.
Visual inspection
Inspect the unit. Look for burn marks, water droplets, or burnt plastic smell.
Engage a Licensed Gas Service Worker (LGSW). If the PCB is damaged or the heater is over 5 years old, replacement may be safer and more cost-effective.

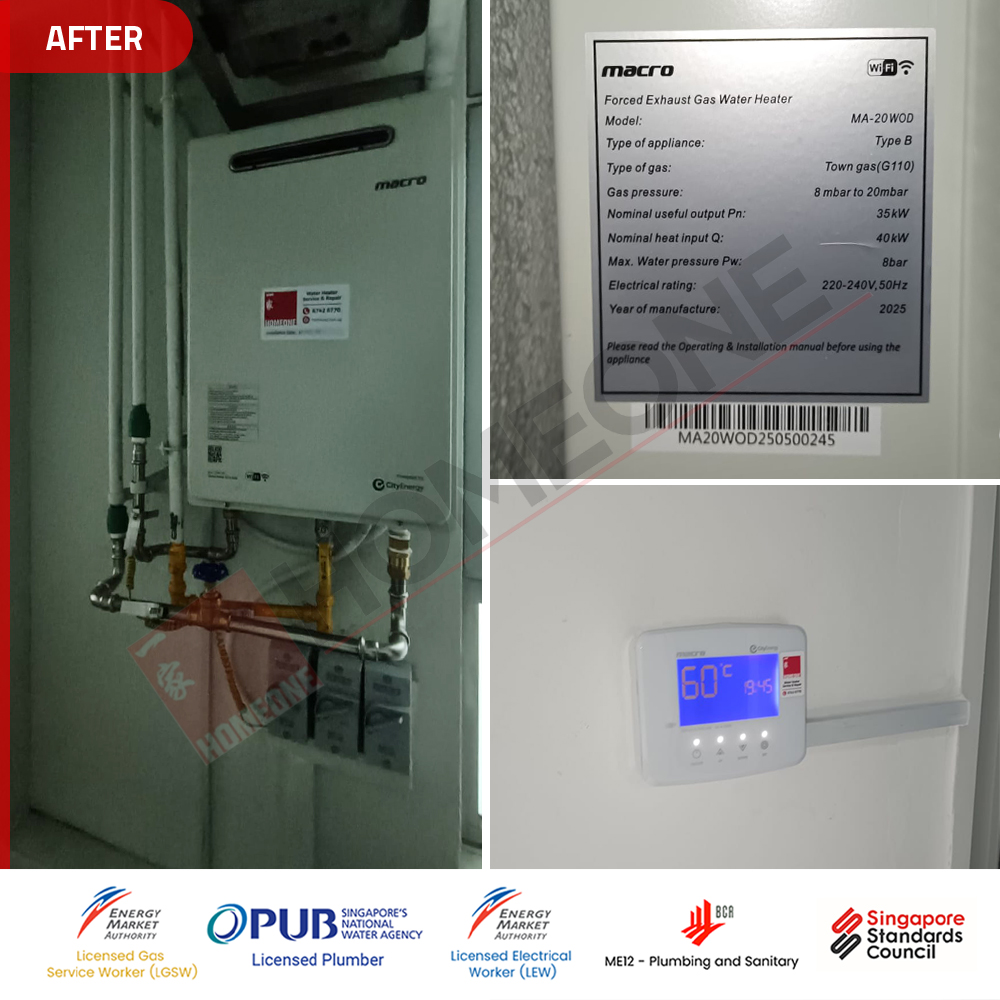

Supplied and installed a new Macro MA-20WODP
Replaced leaking/corroded pipe joints with PUB-approved components
Installed a new control panel for efficient operation and safety.

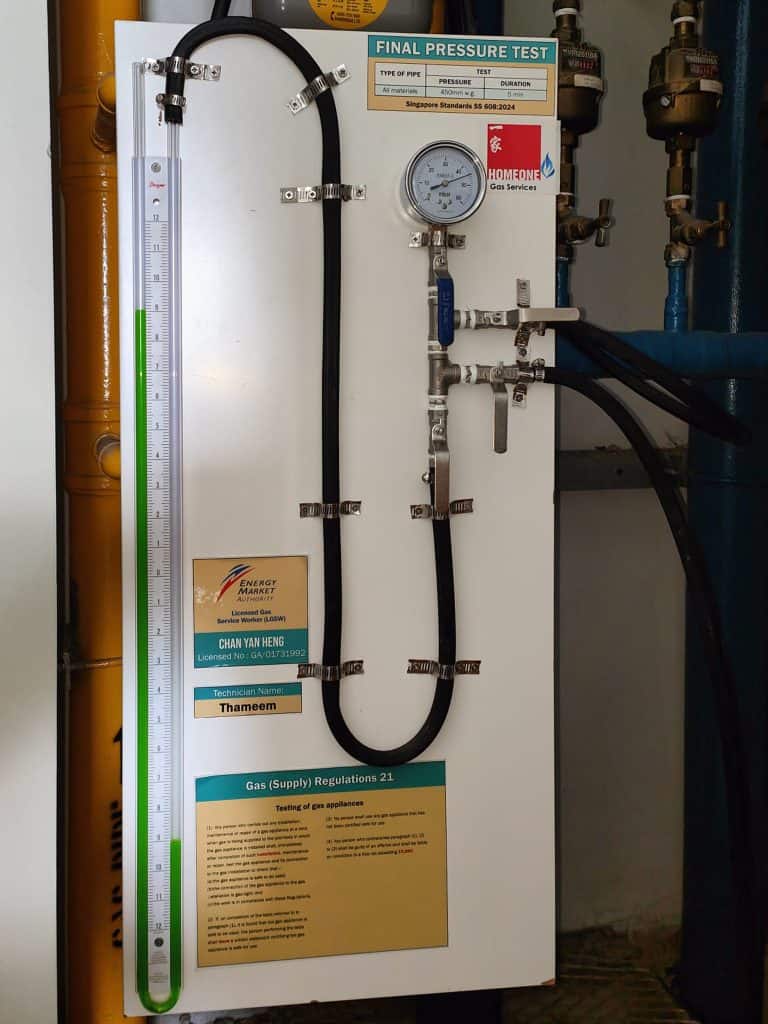

Performed a Final Pressure Test (Reg, 21) to verify a leak-free installation.
Connected a dedicated power supply for the MA-20WODP via isolator.
Installed 2.5mm² supply cable per safety requirements.
Installed 2.5mm² equipotential bonding and verified continuity.
Commissioned and logged readings after heater startup.
1-Year Homeone Engineering Warranty covering workmanship.
1-Year Manufacturer Warranty for the Macro MA-20WOD water heater.
Tip: A legitimate LGSW should be able to provide licence details upon request.
At Woodsville 28 in Potong Pasir, the control panel no display issue was a clear sign of deeper internal failure rather than a simple electrical fault. With multiple ageing components no longer operating reliably, repair was neither safe nor cost-effective. By proceeding with a full replacement to the Macro MA-20WOD gas water heater, the homeowner now benefits from stable operation, restored hot water supply, and a system that meets current safety and gas compliance requirements—delivering long-term reliability and peace of mind.
