Water Heater Installation & Replacement in Bedok
Looking for HDB water heater installation in Bedok? We provide professional water heater replacement services performed by trained technicians and supervised by a PUB Licensed Plumber. Every installation is checked for compliance with SS 636 and SS 638 to ensure safety and reliable operation.

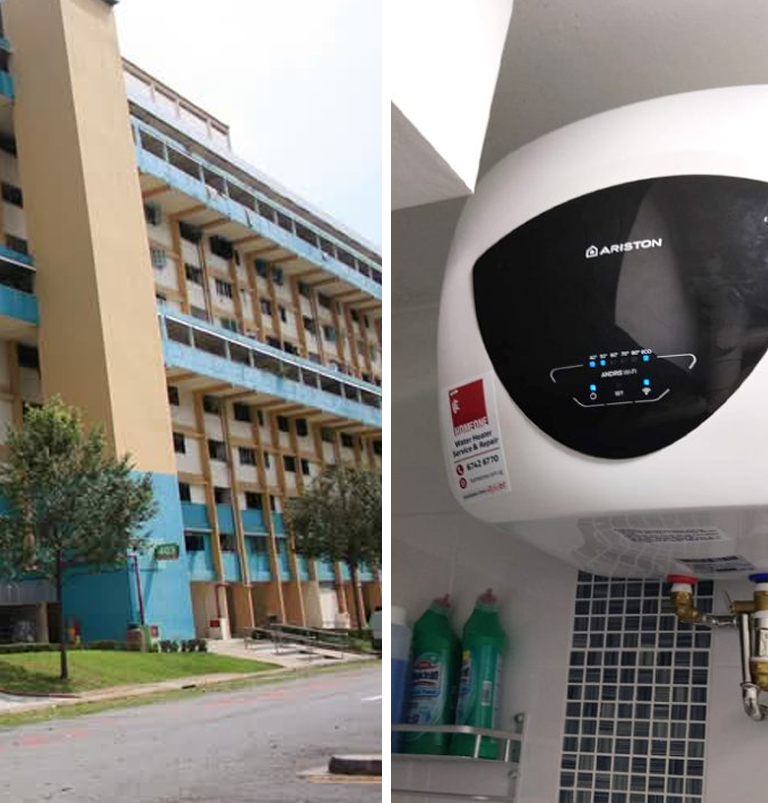

🏢 Water Heater Replacement at 403 Bedok North Avenue 3
*Figures shown are internal job counts and may increase over time.
Serving All Bedok HDB Estates
Homeone has completed many HDB water heater installation and replacement projects across Bedok, including Bedok North, Bedok South, Bedok Reservoir, Bedok Central and Kaki Bukit. Our team is familiar with the common HDB bathroom configurations and concealed ceiling water heater installations found in these estates.
All installations are carried out by trained technicians and supervised by a PUB Licensed Plumber to ensure compliance with SS 636 and SS 638. Every installation is carefully inspected to provide proper water supply protection, electrical safety, and reliable operation for Bedok HDB homes.

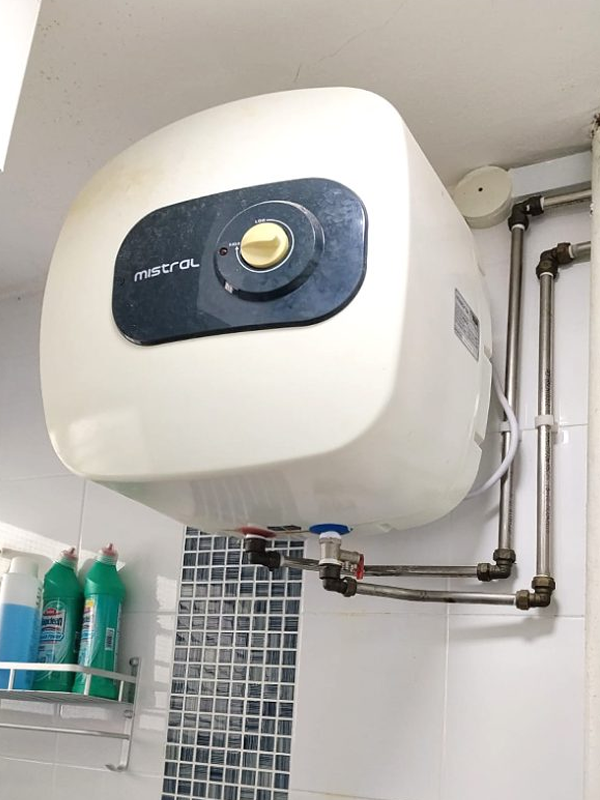

Before & After HDB Water Heater Replacement: 403 Bedok North Avenue 3
What issue does the old water have?
1. Missing Electrical Equipotential Bonding
⛔ The installation does not have a visible electrical equipotential bonding conductor connected to the water piping.
2. Heater do not have check valve.
⛔ Singapore Standard SS 636 – Clause 6.5.2(b)
This device prevents contaminated hot water from flowing back into the potable drinking water system.
3. Missing drainpipe from Pressure Release Valve.
A drain pipe safely directs hot water discharged by the pressure relief valve to the nearest floor trap, preventing tank rupture, ceiling damage, and reducing the risk of scalding.

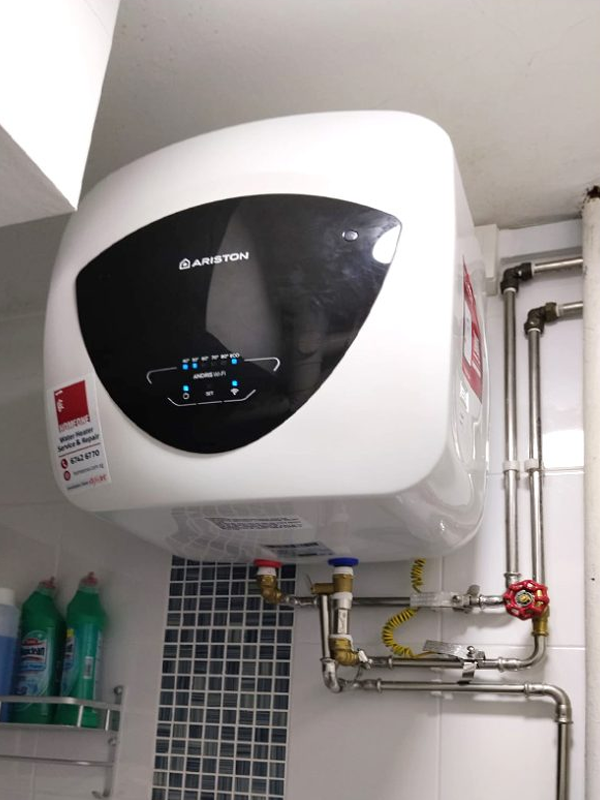

After Replacement - Ariston Andris Lux WiFi 30
1. We install proper check valve.
✅ Singapore Standard SS 636 – Clause 6.5.2(b)
2. We connect for you the earth bonding.
✅ Singapore Standard CP5:1998 – Code of Practice for Electrical Installations, Clause 413-02
3. We add on the drainpipe.
✅A drainpipe safely channels hot water released by the Pressure Release valve when pressure builds up inside the heater.
Completed HDB Water Heater Jobs in Bedok
Authentic HDB water heater installation and replacement projects in Bedok — supported by before-and-after photos and concise job summaries.

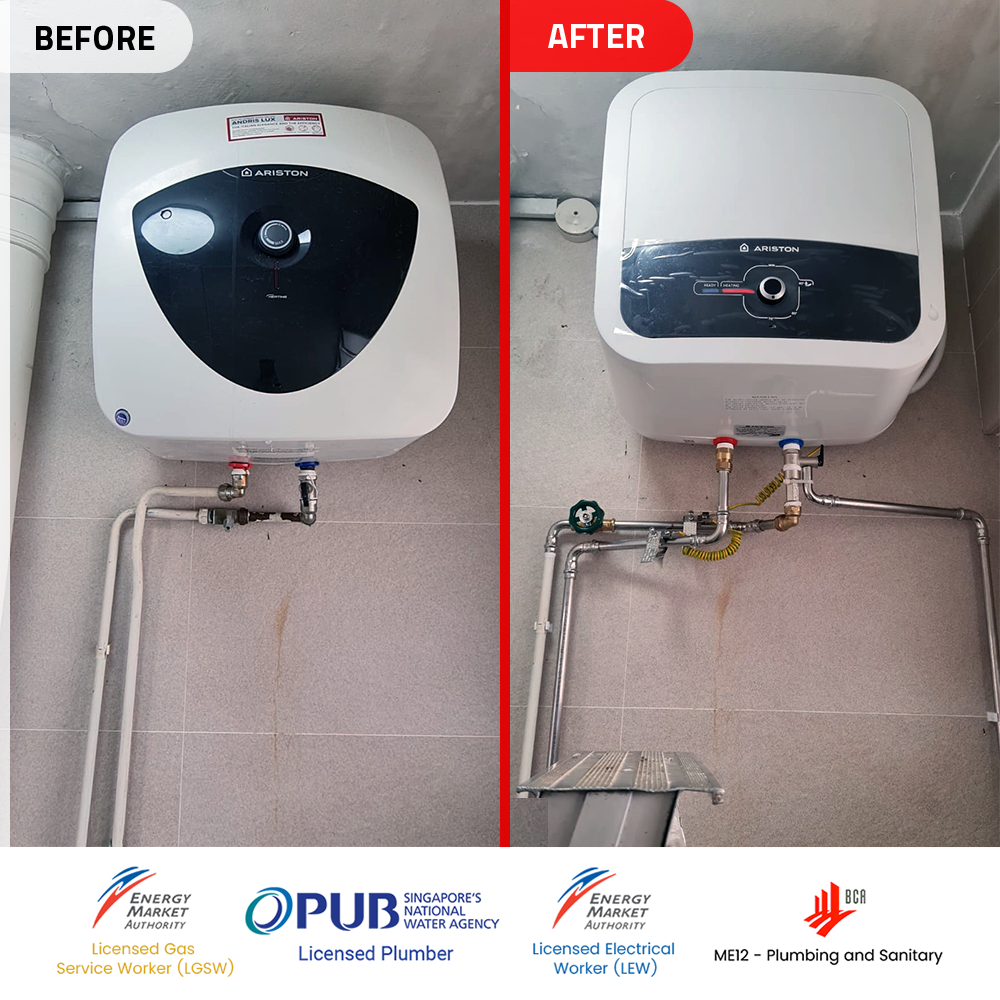

119 Bedok North Road – Ariston Heater Replacement
Completed on 3 September 2024.
- 🚨 Issue:
The Ariston storage water heater has aged significantly, and corrosion is visible on the water pipe fittings beneath the unit. - 🔍 Finding:
- 🚱 Missing approved double check valve: No approved double check valve is installed on the cold water inlet. This safety device helps prevent backflow into the potable water supply and is recommended for storage water heater installations.
- 🔧 No dedicated stop valve: A proper isolation stop valve is not provided for the water heater. This makes future servicing, maintenance, or emergency isolation more difficult.
- ⚠️ Corrosion on pipe fittings: Visible corrosion is present on the galvanised pipe and threaded fittings below the heater. Prolonged corrosion may eventually lead to water leakage and should be replaced during the new installation.
The replacement was carried out by trained technicians under the supervision of a PUB Licensed Plumber to ensure compliance with SS 636 and provide a safe, reliable hot water system.

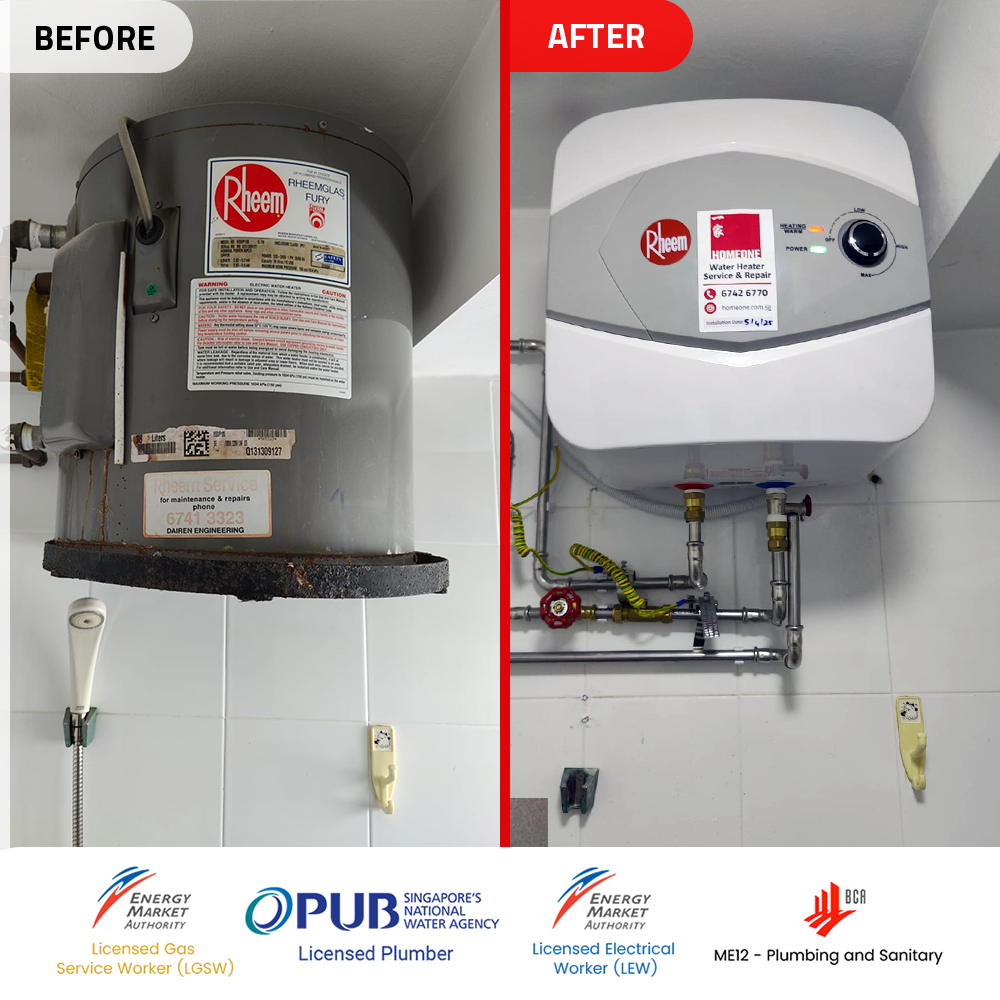

720 Bedok Reservoir Road – Rheem Storage Heater Replacement
Completed on 4 May 2026.
- 🚨 Issue:
The Rheem gallon heater has reached an advanced stage of ageing, with severe corrosion visible around the bottom base of the tank. The extensive rusting suggests prolonged moisture exposure and deterioration of the outer casing and supporting components. - 🔍 Finding:
- 🔴 Severe corrosion on the tank base: Heavy rust is present around the bottom flange and support ring of the water heater. This is a common sign of long-term ageing and may indicate deterioration of the tank structure or prolonged exposure to leaking water.
- 🚱 Safety fittings not visible: Essential components such as the approved double check valve and full-sized isolation stop valve are not visible in the photo. These should be verified during replacement and upgraded where necessary to meet current installation standards.
- ⚠️ Corrosion indicates prolonged moisture exposure: The rust concentrated around the lower section suggests the heater has been exposed to moisture over an extended period, either from condensation, previous seepage, or ageing of the tank and fittings.
The corroded Rheem storage water heater was successfully replaced before a major tank failure occurred. The new installation included upgraded plumbing safety fittings and was tested to ensure reliable operation, improved safety, and compliance with current installation requirements.
All works were carried out under PUB Licensed Plumber supervision and installed in accordance with SS 636 and SS 638 requirements.
How do I verify if my plumber is licensed by PUB?
You can verify whether your plumber is officially licensed by searching their name or licence number in PUB’s official Licensed Plumber Directory.
Homeone conducts all regulated works under PUB Licensed Plumber supervision, ensuring compliance with SS 636 and applicable water service regulations.
✔ Check PUB Licensed Plumber DirectoryWhy choose Homeone for water heater replacement?
Over 15 years of experience working with CityGas heaters in condos across Singapore
PUB Licensed supervision for every project
PUB-Compliant testing & certification
Transparent pricing with no hidden fees
Frequently Asked Questions - Bedok Water Heater
Frequently asked questions by Bedok HDB homeowners about water heater installation, replacement, safety compliance and workmanship standards.
