Joven Water Heater Repair: Heating Element Replacement at Blossoms @ Woodleigh

  • Project location

    Blossoms @ Woodleigh

  • Property type

    Condominium

Joven water heater repair - Heating Element Faulty -Before and After - Blossoms @ Woodleigh

13 Apr 2026

Joven Water Heater Repair: Heating Element Replacement

📍 Blossoms @ Woodleigh

The homeowner contacted Homeone for a Joven water heater repair after their storage water heater repeatedly tripped the circuit breaker the instant the heater switch was turned on. The result — no hot water, and a heater that simply refused to stay on.

This is one of the most common faults we encounter during a Joven water heater repair job in Singapore, and it almost always points to a failed heating element causing electrical leakage.

Home 💧 STORAGE WATER HEATER ✅ PUB COMPLIANT
Joven water heater repair - Heating Element Faulty -Before and After - Blossoms @ Woodleigh

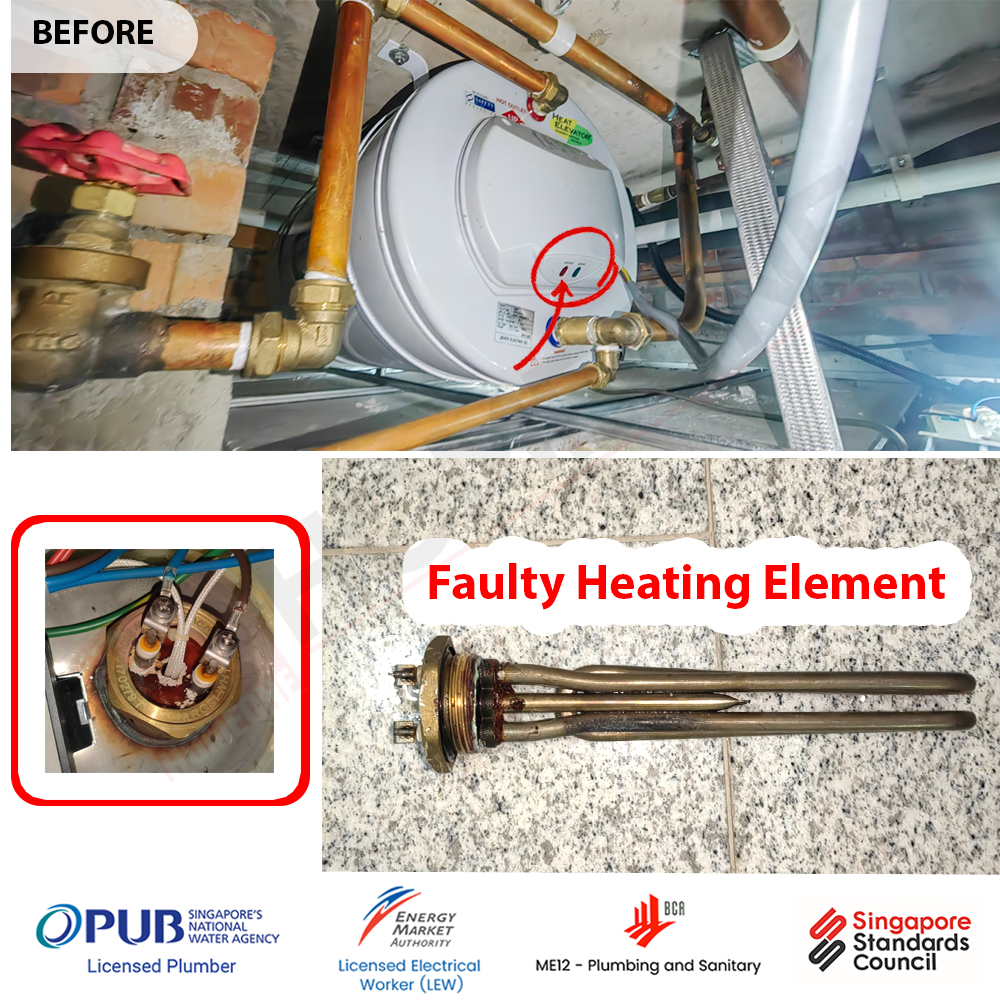

Joven water heater repair Heating Element Faulty Before Repair 1

Why Does a Heating Element Fail?

Inside every storage water heater, the heating element sits submerged in water for years. Over time, several factors break it down:

  • Rust and corrosion form on the element due to constant exposure to hot water and minerals, especially once the sacrificial anode rod is worn out.
  • Mineral scale build-up coats the element, causing it to overheat and crack its protective sheath.
  • Insulation breakdown allows water to penetrate the element’s core, creating a direct path for electricity to leak into the tank body.
  • Once leakage occurs, the RCD/MCB detects it and trips immediately — this is a safety feature, not a fault with your breaker.

⚠️ Ignoring the trip is dangerous. Left unresolved, a faulty heating element can lead to electric shock, complete heater failure, short circuits, or even a fire hazard.

How We Fixed It — The Repair Process

Our technician carried out the replacement in five clear stages:

  1. Diagnosis & Isolation — Isolated the heater from mains supply and confirmed the trip was caused by earth leakage from the heating element (not the heater switch, thermostat, wiring, or breaker).
  2. Water Shut-Off & Tank Drain — Closed the inlet valve and partially drained the tank to allow safe access to the element port.
  3. Faulty Element Removal — Carefully extracted the old Joven heating element. Visible rust, scale deposits, and insulation deterioration confirmed the diagnosis.
  4. New Element Installation — Installed a compatible replacement heating element with fresh seals, ensuring a watertight fit. All electrical connections were cleanly re-terminated.
  5. System Test & Handover — Restored water supply, switched on the heater, and confirmed zero tripping, correct heating performance, and no leaks before leaving site.

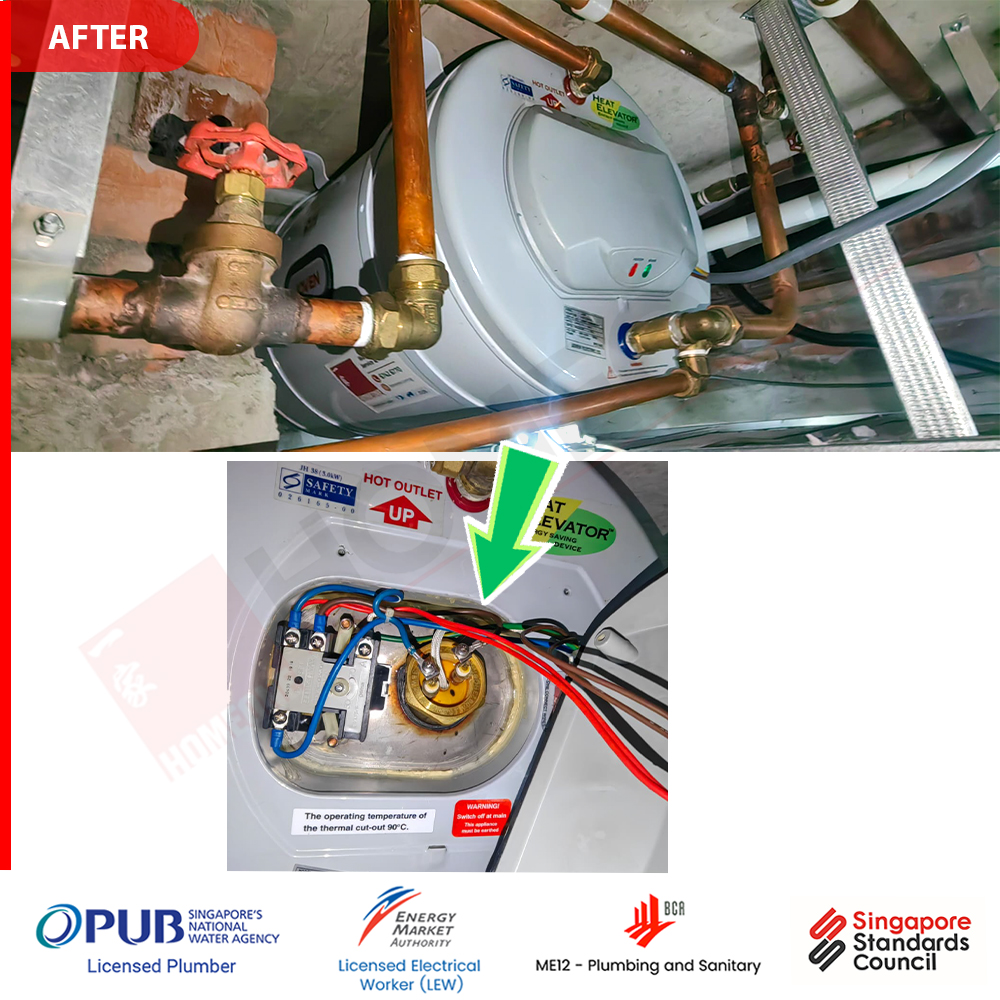

Joven water heater repair Heating Element Faulty After Repair 1
🔧 Water heater trouble?
Get a fast, repair — same-day service available
WhatsApp Homeone 8822 6770
Online now ⚡ Fast reply 🛡️ Licensed & warranty-backed

Signs Your Heating Element May Be Failing

Call us for a same-day assessment if you notice any of these symptoms:

  • Heater trips the circuit breaker the moment it’s switched on
  • No hot water despite the unit being powered
  • Indicator light flickering or not turning on at all
  • Visible rust, water stains, or dampness around the heater base
  • Heater takes much longer than usual to heat up water

Need a Joven Water Heater Repair?

If your water heater keeps tripping, has stopped heating, or is showing signs of age — don’t wait for a full breakdown. Contact Homeone today for a licensed, warranty-backed repair by Singapore’s trusted plumbing and electrical specialists.

Frequently Asked Questions

1.5 – 2 HRSA Joven heating element replacement is a well-defined repair that one qualified technician can complete in about 1.5 to 2 hours.

You don't need to clear out the area or take the whole day off work — a single appointment window is usually enough to have your hot water back up and running.

MOST CASES — NOIn most cases, no — especially when the heater is still in good working condition. For this job at Blossoms @ Woodleigh, the tank showed no signs of leakage or corrosion, and the unit was only at about half of its expected lifespan.

When the tank is still healthy and the fault is isolated to the heating element, a targeted replacement is far more cost-effective than swapping out the entire heater. With a warranty-backed part, you get another solid stretch of reliable hot water — without the unnecessary cost of a full unit replacement.

3-MONTH WARRANTYEvery heating element we install comes with a 3-month warranty for your peace of mind.

Should the element develop any fault within this period, we will return to rectify it at no additional charge.
