5 Jul 2024

Solar Water Heater Replacement with Joven JSH56 Storage Water Heater at A Landed house at Mei Hwan Drive, Golden Hill Estate on 8 May 2023

  • Project location

    Mei Hwan Drive, Golden Hill Estate

  • Property type

    Landed

Solar Water Heater Replacement at 26 Mei Hwan Drive, Golden Hill Estate- 8 May 2023

Before

The owner encountered problems with their solar water heater, which had reached the end of its operational life. Our technician evaluated the situation and initially suggested a 60-liter storage water heater. Subsequently, a Homeone salesperson discussed installation details with the owner. Eventually, they chose a 56-litre Joven tank to better suit their hot water requirements.

After

Our licensed technician replaced the solar water heater's hot and cold water pipes. A Joven JSH56 Water Heater now replaces the old system, with all stainless steel pipework. Included in installation are new stop valve, double check valve, drain pipe, electric bonding, 2.5mm² wire, and PUB safety compliance. Enjoy peace of mind and reliable service with Homeone's 1-year warranty alongside the manufacturer's.

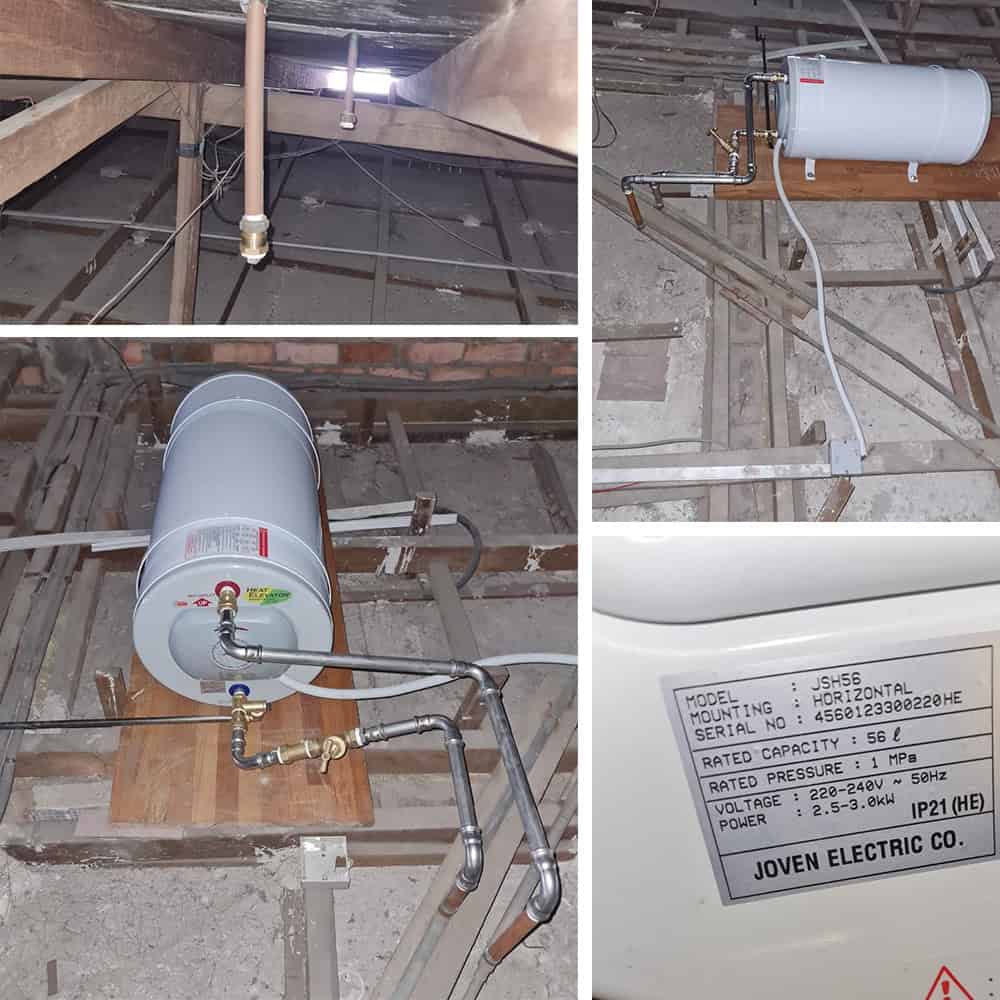

The final result

Solar Water Heater Replacement with Joven JSH56 Storage Water Heater

Old solar water heater:

Solar Water Heater (Unknown Brand)


New storage water heater:

Joven JSH56 Storage Water Heater

JOVEN, founded in 1983, was the first Malaysian electric water heater manufacturer.
Starting as a small start-up in Klang, Malaysia, JOVEN began production of its inaugural water heater, marking the beginning of its journey in the industry.
Centralised multi-point system with dry-burn protection. Suitable for 2 showers, 1 rain shower (8″ or 6″), or 1 wash basin. Ideal for low-use kitchen sinks. 56L capacity, 1.5-3.0 kW power, heats up to 70°C.
Features an Incoloy heating element, stainless steel, CFC-free insulation, and antibacterial technology.



This heater unit has met the following requirements for a water heater:

Work Scope:

  1. Cut off the water pipes from the old solar water tank.
  2. Terminate the hot and cold water pipes from the old solar water tank.
  3. Install the plywood floor.
  4. Supply of tank, pipe, and fittings.
  5. Pipeworks partial redo to comply with PUB regulations
  6. New tank installation
  7. Testing and commission.
  8. Submission to PUB
  9. Clean up before leaving
  10. PUB approval letter

Regulatory Compliance:

The electric water heater as a whole unit (i.e. parts incorporated in the water heater itself such as heating element, pressure relief valve/temperature relief valve, water tank, etc. shall be tested in accordance with the following:

  1. AS/NZS 4020:2018 Appendix K – Sample extraction procedure for use with water heating system.
    An accredited or non-accredited test report for Appendix K is acceptable provided that the test laboratory is accredited by Singapore Accreditation Council (SAC) to AS/NZS 4020:2018 Appendix H on Extraction of Metals, at the point of testing;
  2. The samples extracted in accordance with Appendix K shall then be tested in accordance with AS/NZS 4020:2018 Appendix H – Extraction of metals (for metallic materials in contact with water).
    The maximum allowable concentrations of metals listed in Table 2 of AS/NZS 4020:2018 shall not exceed the limits specified by the World Health Organization (WHO) Guidelines for Drinking Water Quality.



Reason for the Replacement: End of service life

Our  licensed water service plumber has ensured that work is done in accordance with the conditions stated below:

  1. All water service installations must be in accordance with the Public Utilities (Water Supply) Regulations, Singapore Standards 636 for Water Services, and all other relevant statutory requirements.
  2. The proposed works shall not adversely affect the existing water supply reticulation system.
  3. Proposed water storage heater is installed in accordance with the specifications and requirements of the manufacturer.
    The installation of double check valves is safe and effective to prevent backflow and the back siphonage of water from the storage water heater through the heater inlet pipe and will be safe for use.

Conclusion:

In conclusion, the Joven JSH56 storage water heater is a high-quality and reliable product that meets all necessary regulatory requirements.
The installation was carried out in compliance with PUB regulations, ensuring the safety and effectiveness of the new water heater.
We are pleased to inform you that we have received the PUB Approval Letter for the installation.
This letter means that PUB has a record of this heater replacement job and it is authorized.
