11 Jul 2025

Cote D’Azur

Rheem Water Heater Leaking: EH-55M Replaced with EH-55M at Cote D’Azur Condo on 9 Jul 2025

At Cote D'Azur Condo, our team responded to a homeowner's report of a malfunctioning Rheem EH-55M water heater that was actively leaking from its tank. Upon inspection, we discovered significant corrosion damage to both the internal tank components and external fittings, compounded by critical safety oversights, including a missing check valve and absent electrical bonding. Recognizing the unit was beyond repair, we recommended immediate replacement with an identical Rheem EH-55M model to maintain performance consistency.

Our technicians executed a comprehensive PUB-compliant installation that not only resolved the Rheem Water Heater Leaking issue but also rectified all safety deficiencies - installing proper backflow prevention, implementing required electrical bonding, and upgrading connections with corrosion-resistant stainless steel fittings. The entire replacement process, conducted under the supervision of our PUB-licensed plumber, restored safe and reliable hot water service while bringing the installation up to current regulatory standards. This case underscores the importance of timely intervention when water heater leaks occur, as it prevents property damage while addressing often-overlooked safety requirements that are crucial for household protection.

  • Project location

    Cote D’Azur

  • Property type

    Condominium

Rheem Water Heater Leaking - Condo. 00

Before

Replacement of Rheem EH-55M to resolve heater problems end of service life.

After

The Rheem EH-55M has been newly installed to the existing water heater system, with all connecting pipework made of stainless steel. The installation includes a new stop valve, double check valve, drain pipe, electric bonding, and 2.5mm² wire, and a submission has been filed to PUB to ensure safety and compliance with PUB regulations. Additionally, Homeone offers a 1-year warranty on this installation, complementing the manufacturer's warranty, ensuring peace of mind and reliable service.

Rheem Water Heater Leaking: EH-55M Replaced with EH-55M

📍Cote D’Azur

A homeowner at Cote D’Azur engaged Homeone to inspect their existing Rheem EH-55M storage water heater after noticing water leakage and persistent drops in pressure. Upon site assessment, our technician found that the heater had reached the end of its lifespan and had developed internal tank leakage, making it beyond economical repair.

🏢 LANDED 💧 STORAGE WATER HEATER ✅ PUB COMPLIANT

Project Overview

A homeowner at Cote D’Azur engaged Homeone to replace their existing Rheem EH-55M storage water , which was showing visible signs of wear and non-compliance.

Why this replacement is needed?

This Rheem EH-55M replacement at Cote D’Azur was not just a heater swap, but a full safety and compliance upgrade. The previous installation lacked critical elements that are now mandatory under PUB regulations. With proper fittings, safety valves, and electrical bonding in place — and a completed PUB submission — the new installation is now safe, functional, and officially documented.

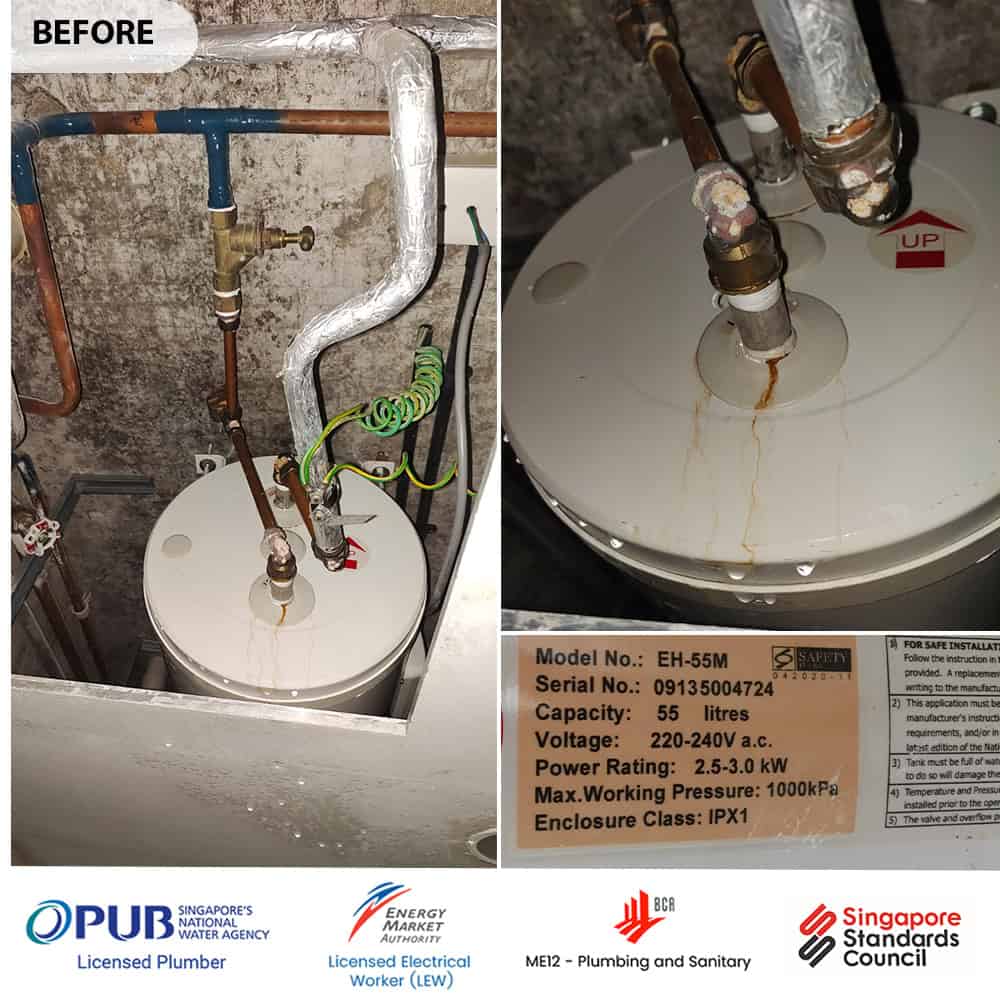

Before

Old storage water heater before replacement at Cote D'Azur

Rheem Water Heater Leaking - Condo. 01
 Rheem EH-55M end of service life.

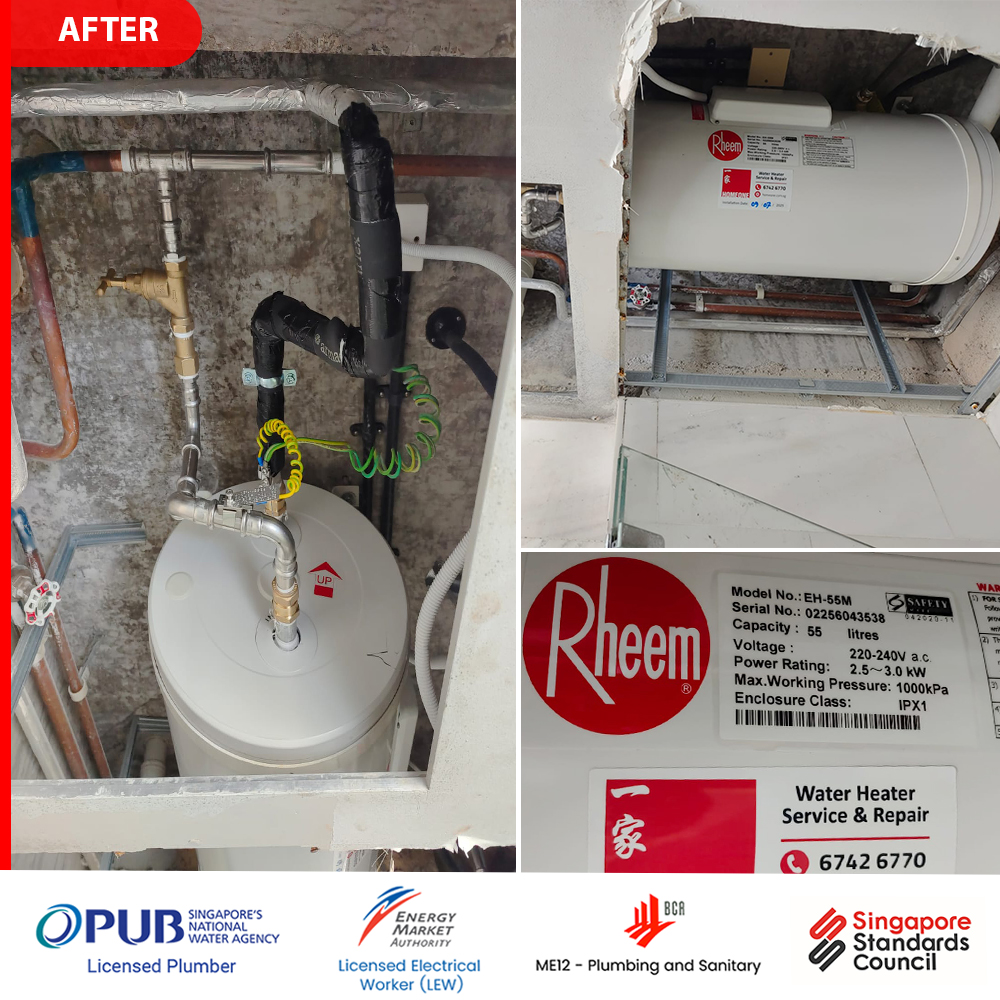

After

New storage water heater installed

Rheem Water Heater Leaking Condo. 02
Rheem EH-55M

Call Centre Support Rheem storage heater

Call Rheem Storage Heater in Singapore

⚠️ We are an independent PUB-Licensed Service Provider specialising in Rheem water heater inspection, servicing, and replacement in Singapore.

Need to reach us at our call centre?

whatsapp icon white 24/7 Rheem Heater Help

💬 Fast diagnosis by licensed professionals.

Select your issue:



⚠️ Looking for a call centre for your Rheem storage heater in Singapore?

If you need to speak to a call centre regarding your Rheem storage heater, you’re in the right place.

Our Rheem Storage Heater Call Centre Support Singapore is set up to help homeowners who want fast answers, not long wait times.

Call centre support rheem storage heater at +65 6742 6770

🚨 Homeowners typically contact our call centre for Rheem storage heaters when they experience:

Just whatsapp or call us directly.

🔻

Call Centre Rheem storage heater: +65 6742 6770

Whatsapp Rheem Quick Enquiry: +65 8822 6770

The outcome of our work

Site Findings

  • The existing Rheem EH-55M was leaking from the tank body, with visible corrosion on fittings.
  • No approved check valve was installed, risking backflow into the potable water system (SS636 violation).
  • Missing electrical bonding on the metal body and piping, violating *CP5:1998 Clause 413-02* (electrical safety hazard).

Replacement Work Scope ⚙️

Dismantling

  • Isolated water and electrical supply

  • Removed the leaking Rheem EH-55M

  • Disposed of corroded pipes and fittings

Installation

  • Delivered and mounted the new Rheem EH-55M

  • Installed check valve, drain pipe, and stop valve

  • Connected cold/hot pipes using stainless steel fittings

  • Added electrical bonding between heater and pipework

Testing & Commissioning

  • Conducted leak and pressure tests

  • Verified temperature control and heater functionality

  • Final safety inspection & clearance

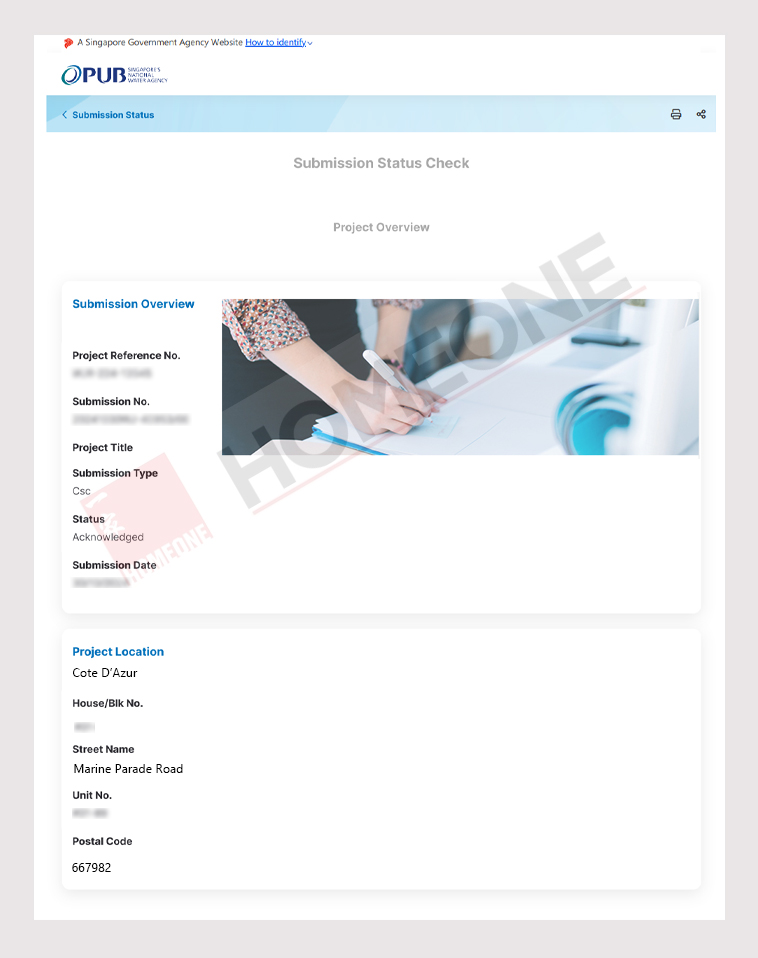

PUB Certificate Cote D Azur Rheem Water Heater

Submission for PUB

Our job was completed together with the required PUB submission. This ensures all plumbing works meet PUB’s standards and comply with Public Utilities (Water Supply) Regulations — a key part of doing the job safely and correctly.

Conclusion:

This case at Cote D’Azur Condo highlights how a Rheem water heater leaking can compromise safety and functionality. By replacing the faulty unit with a new EH-55M and ensuring PUB compliance, we restored reliable hot water while eliminating electrical and plumbing hazards.

At Homeone, we prioritize safety, compliance, and quality in every heater replacement—protecting homes across Singapore.
