Joven Water Heater Leaking Replacement at Djitsun Mall, 5 Ang Mo Kio Central 2 on 7 Oct 2024

A Djitsun Mall shop owner encountered significant water damage when their Joven JSH91 water heater developed a leak from excessive water pressure and a blocked drainpipe, voiding the manufacturer’s warranty. The issue caused ceiling leakage in the man bathroom, requiring immediate intervention to prevent further structural damage.

We replaced the faulty unit with a new Joven JSH91 heater, installed a pressure reducing valve, and upgraded the drainpipe system to prevent future failures. The PUB-compliant installation, supervised by licensed plumbers, now ensures safe, leak-free operation while meeting all Singapore water regulations—giving the business owner a reliable, long-term solution with proper pressure management.

Project location
Djitsun Mall
Property type
Mall Shop

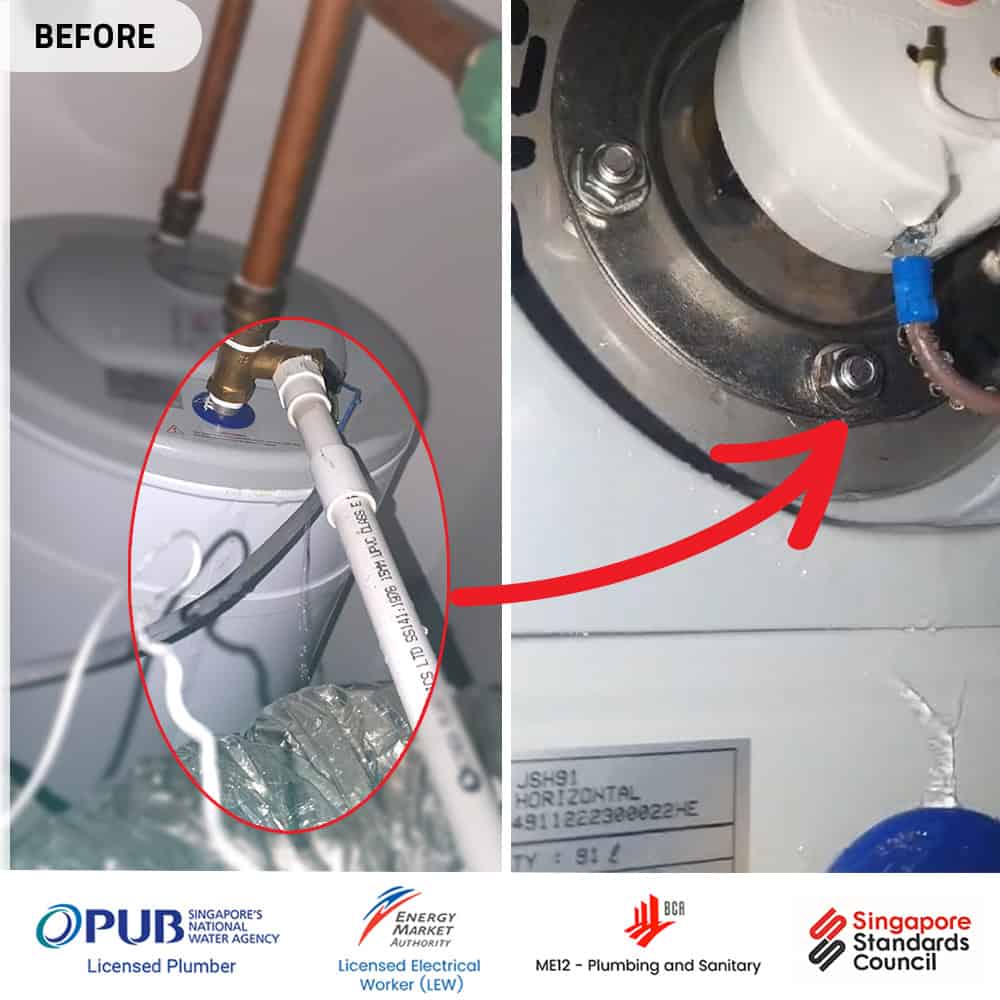

Before

Replacement of Joven JSH91 to resolve heater problems end of service life.

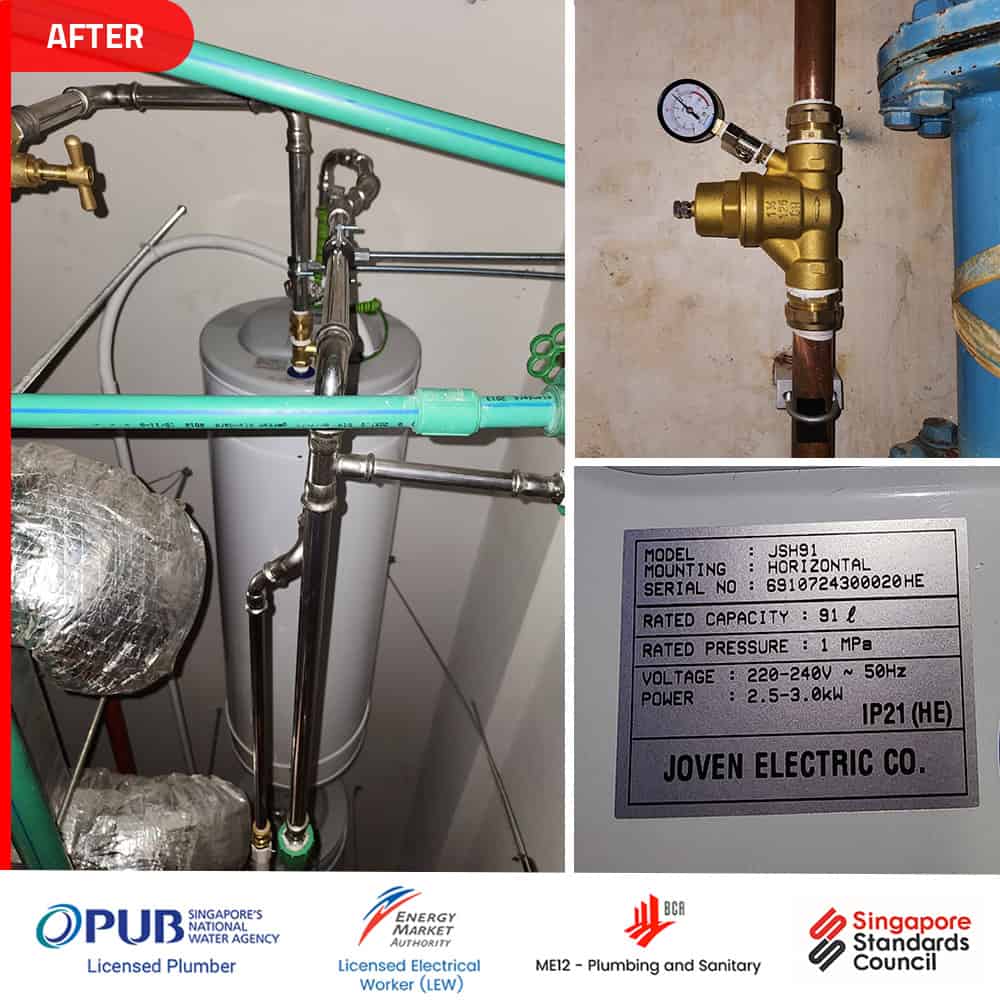

After

The Joven JSH91 is newly installed with stainless steel pipework. A new approved stop valve (gate valve) and double-check valves were used, ensuring compliance with PUB Regulations. Our Licensed Plumber supervised and approved the installation. Enjoy a 1-year Homeone warranty, in addition to the manufacturer's warranty.

Table of Contents

Joven Water Heater Leaking Replacement

Customer Report:

A shop owner at Djitsun Mall (5 Ang Mo Kio Central 2) reported a Joven water heater leaking from the ceiling above the staff bathroom. The Joven JSH91 unit was still under the manufacturer’s warranty, but a joint site assessment by Homeone Technician and Joven®’s in-charge personnel revealed the leak voided the warranty due to two critical issues:

Missing Pressure Reducing Valve – High water supply pressure damaged the heater.
Choked Drainpipe – The shared drainpipe (connected to other heaters) was blocked, increasing internal pressure.

To resolve the issue permanently, we recommended:

Replacement of the leaking Joven JSH91 with a new Joven JSH91 unit.
Installation of a Pressure Reducing Valve to protect the new heater.
New Dedicated Drainpipe for proper discharge.
All works were carried out by PUB-licensed plumbers and submitted for PUB compliance.

Site Assessment Findings:

Warranty Void Confirmed – Joven water heater leaking due to excessive pressure and improper drainage.
No Pressure Reducing Valve – High mains pressure strained the tank, causing leaks.
Faulty Drainpipe – A shared, clogged drainpipe worsened pressure buildup.

Work Scope for Joven Water Heater Leaking Replacement:

Supply & Install New Joven JSH91 Water Heater – Direct replacement of the faulty unit.
Install Pressure Reducing Valve – Regulates water pressure to prevent future damage.
New Drainpipe Installation – Dedicated, unclogged drainage to avoid backups.
Full Pipe Works Compliance – Redone to meet PUB standards.
Testing & Commissioning – Ensures no leaks and proper function.
PUB Submission – Documentation for regulatory approval.
Clean-Up & Handover – Worksite left spotless.

Regulatory Compliance:

The new installation adheres to PUB’s strict water heater regulations, ensuring:

1. AS/NZS 4020:2018 Compliance – The water heater meets metal extraction safety standards for drinking water.
2. Proper Discharge System – The TPRV drain pipe is correctly installed to prevent water damage.
3. Electrical & Plumbing Safety – All connections are secured and bonded as per Singapore standards.

Conclusion:

The Joven water heater leaking was caused by high water pressure and a choked drainpipe, voiding the warranty. By replacing the unit with a new Joven JSH91, installing a pressure reducing valve, and upgrading the drainpipe, we resolved the issue while ensuring full PUB compliance. The shop owner now has a reliable, leak-free system with long-term protection against future damage.

Need help with a leaking water heater? Contact us for a professional assessment and PUB-compliant solutions!

Location: Djitsun Mall, 5 Ang Mo Kio Central 2
