A homeowner at Kerrisdale encountered an inconvenient and potentially hazardous issue involving their Joven water heater — it was leaking and causing power tripping whenever the switch was turned on. Concerned about safety and usability, they reached out to Homeone to assess whether the situation could be repaired or if a full heater replacement was needed.
Our licensed technician conducted a thorough on-site inspection and quickly identified the root cause. The Joven leaking was not only persistent but also directly linked to the Joven power trip, making it clear that heating element replacement was required to restore both performance and safety.

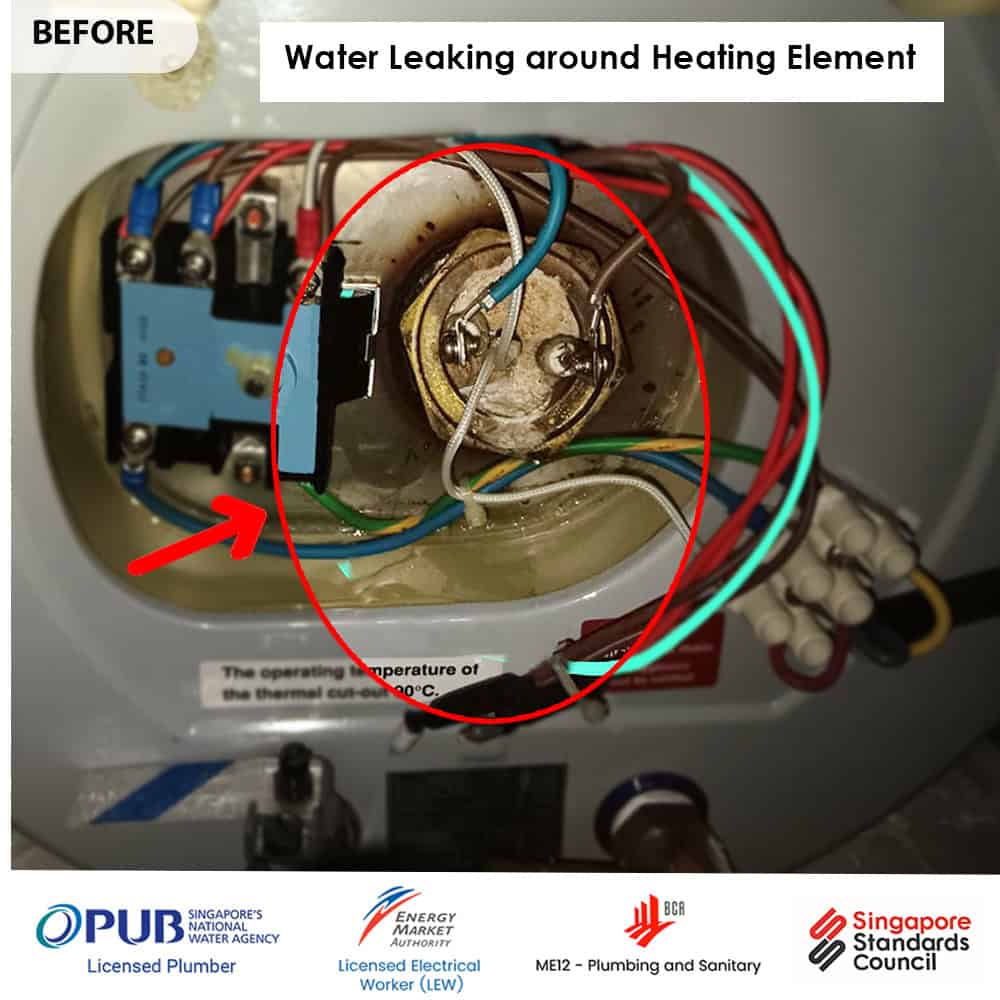

Upon arrival, our technician first checked for any external pipe leaks and inspected the unit’s casing. It became evident that the Joven leaking originated around the bottom area of the heater, particularly near the heating element. Water traces were visible around the base plate, accompanied by signs of rust and corrosion, which are common indicators of water seepage from within the tank.
Closer inspection revealed that the heating element was the primary source of the problem. The surrounding metal surface had corroded, likely due to prolonged exposure to water without proper sealing or maintenance. As water made contact with the electrical components inside, it created a short circuit, which led to the Joven power trip every time the unit was activated.
After a detailed assessment, Homeone recommended a heating element replacement to fix both the Joven leaking and power tripping issues. Since the tank itself was still structurally sound and there were no additional cracks or leaks, replacing the heating element was the most cost-effective and practical option.
The new heating element used was a genuine Joven part with corrosion-resistant materials, ensuring longevity and reliable heating. The gasket and sealing components were also upgraded to prevent future leaks. Additionally, we conducted moisture checks inside the casing and electrical box to ensure no residual water remained.
Testing the Heater Circuit:
Performed insulation resistance and continuity tests.
Verified that the circuit breaker tripped when the heater was turned on.
Confirmed the correlation between the Joven power trip and internal water leakage.
Replacement of Heating Element:
Disconnected the water and electrical supply.
Removed the corroded heating element from the unit.
Cleaned internal surfaces and removed all rust residue.

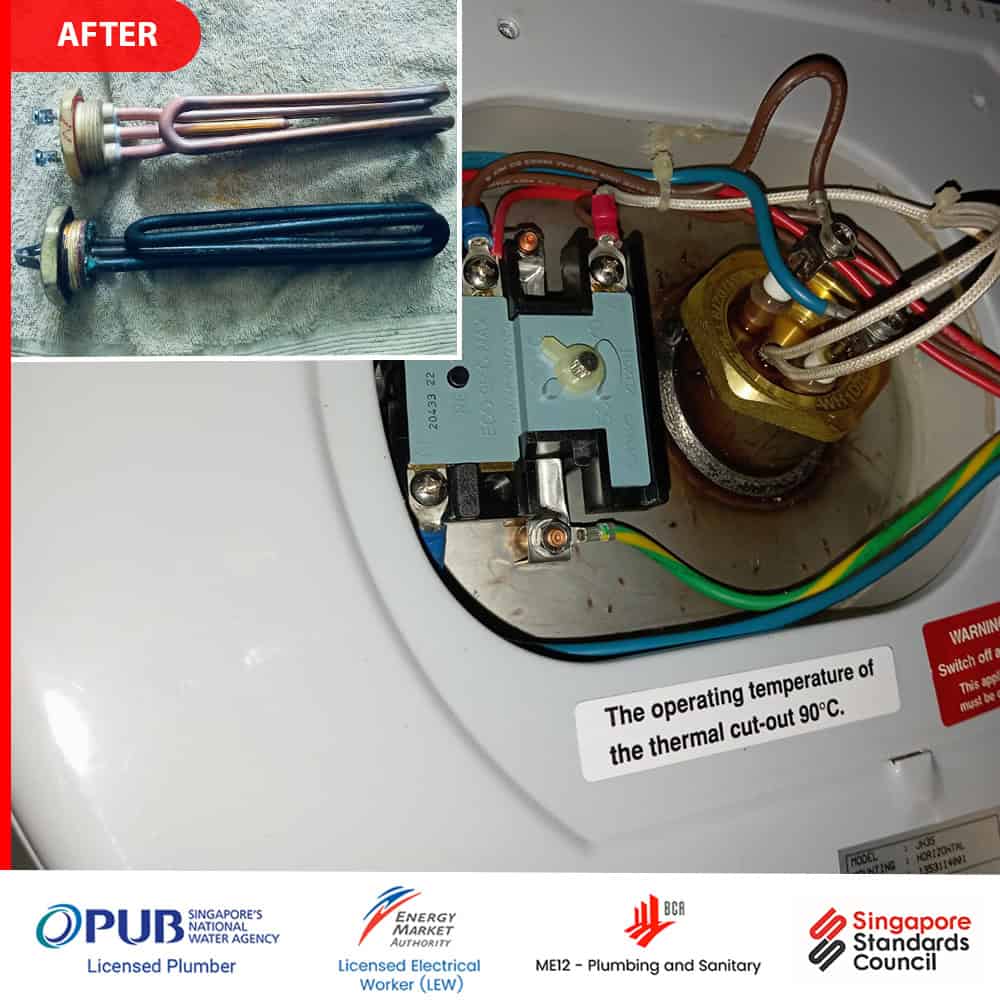

Installed a brand-new Joven heating element with anti-corrosion coating.
Re-sealed with new gaskets and secured all bolts to factory specifications.
Final Testing:
Reconnected the water and power supply.
Conducted dry run testing to ensure no Joven leaking from the new element.
Powered on the unit and tested heating performance.
Verified that there were no signs of Joven power trip after heating cycle.
Workplace Tidy-Up:
Cleaned the surrounding work area.
Disposed of the old heating element and corroded parts.
Checked for any leftover moisture around the heater.
Took final photos and documented the repair.
The Joven leaking and power tripping were caused by a corroded heating element, a common issue in older water heaters due to internal wear and prolonged exposure to moisture. As water entered the electrical zone, it triggered short circuits that led to repeated Joven power trip incidents, disrupting the supply of hot water.
Homeone’s expert diagnosis and precise heating element replacement fully resolved the problem. The homeowner now enjoys safe, reliable hot water with no leaks or tripping. All work was carried out by licensed professionals and is compliant with Singapore’s safety and plumbing regulations, ensuring long-term peace of mind.
For any water heater concerns, trust Homeone to deliver safe, efficient, and fully compliant solutions.
Condo Name: Kerrisdale
