14 Nov 2022

Ariston TI-SHAPE 30 R Water Heater Replacement With Rheem EHG-25S Water Heater at 332 Anchorvale Link HDB on 12 May 2022

The Ariston Water Heater Anchorvale Link project is mandatory to comply with Section 40G of the Public Utilities Act 2001, which requires all storage installations to be submitted to the Public Utilities Board (PUB) for an Acknowledgment of Authorized Heater Replacement. This ensures that the installation meets all relevant regulations and standards, providing peace of mind regarding the safety of the installation. By complying with this requirement and obtaining the PUB Approval Letter, your storage water heater installation is authorized and safe to use. Let PUB ensure that your installation meets all necessary requirements and protects you.



  • Project location

    332C Anchorvale Link

  • Property type

    HDB

Ariston TI-SHAPE 30 R Water Heater at 332C Anchorvale Link HDB

Before

Replacement of Ariston TI-SHAPE 30 R Water Heater to resolve heater problems end of service life.

After

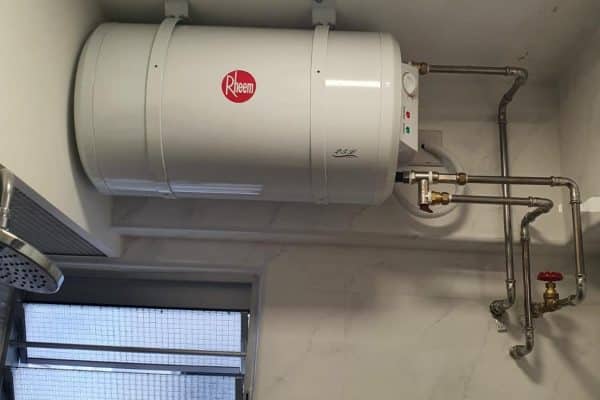

Similar Rheem EHG-25S 25L Water Heater is used for replacement. All pipe works connecting to the heaters are replaced with stainless steel. A new approved stop and double check valves are employed in accordance with the manufacturer’s specification. Such will comply with PUB. Our Licensed has supervised and approved the installation. There is a 1-year warranty by Homeone for this installation on top of the warranty provided by manufacturer.

The final result

Ariston TI-SHAPE 30 R Water Heater Replacement

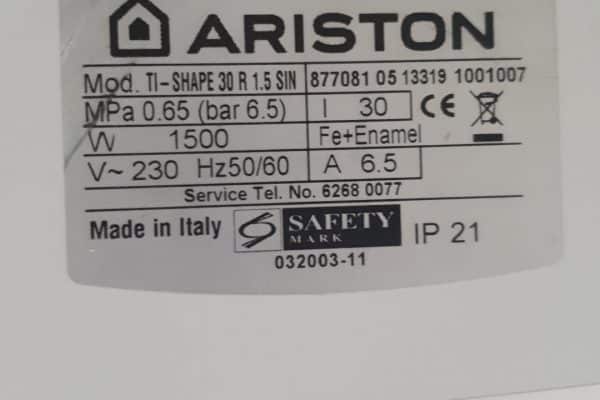

Old storage water heater: Ariston Shape 30 R15 15L Sin Water Heater Below Ceiling.

New storage water heater: Rheem EHG-25S 25L Water Heater Below Ceiling.

This heater unit has met the following requirements for a water heater:

Work Scope:

1. Supply of tank, pipe and fittings
2. Removal of old tank
3. Pipe works partial redo to comply with PUB regulations
4. New tank installation
5. Testing and commission. Submission to PUB
6. Clean up before leaving
7. PUB approval letter

Regulatory Compliance:

The electric water heater as a whole unit (i.e. parts incorporated in the water heater itself such as heating element, pressure relief valve/temperature relief valve, water tank, etc. shall be tested in accordance with the following:

  1. AS/NZS 4020:2018 Appendix K – Sample extraction procedure for use with water heating system. An accredited or non-accredited test report for Appendix K is acceptable provided that the test laboratory is accredited by Singapore Accreditation Council (SAC) to AS/NZS 4020:2018 Appendix H on Extraction of Metals, at the point of testing;
  2. The samples extracted in accordance with Appendix K shall then be tested in accordance with AS/NZS 4020:2018 Appendix H – Extraction of metals (for metallic materials in contact with water). The maximum allowable concentrations of metals listed in Table 2 of AS/NZS 4020:2018 shall not exceed the limits specified by the World Health Organization (WHO) Guidelines for Drinking Water Quality.



Reason for the Replacement: End of service life

Our  licensed water service plumber has ensured that work is done in accordance with the conditions stated below:

  1. All water service installations must be in accordance with the Public Utilities (Water Supply) Regulations, Singapore Standards 636 for Water Services, and all other relevant statutory requirements.
  2. The proposed works shall not adversely affect the existing water supply reticulation system.
  3. The proposed water storage heater is installed in accordance with the specifications and requirements of the manufacturer. The installation of double-check valves is safe and effective in preventing backflow and the back-siphonage of water from the storage water heater through the heater inlet pipe and will be safe for use.

Conclusion:

In conclusion, the Rubine SPH 30S SIN 3.0 water heater is a high-quality and reliable product that meets all necessary regulatory requirements. The installation was carried out in compliance with PUB regulations, ensuring the safety and effectiveness of the new water heater. We are pleased to inform you that we have received the PUB Approval Letter for the installation. This letter means that PUB has a record of this heater replacement job it is authorized.

Condo Name: 332C Anchorvale Link
