14 Nov 2022

Ariston AN2 30 RS Water Heater Replacement with Rheem EHG-30 Water Heater at 119A Canberra Crescent on 17th October 2022

Replacement of an Ariston Canberra Crescent HDB Water Heater at a HDB, Block 119A Canberra Crescent, Singapore 751119 unit.

Project location
119A Canberra Crescent
Property type
HDB

Before

Replacement of a storage heater from existing Ariston Canberra Crescent HDB Water Heater to resolve heater problems end of service life.

After

Similar [Brand] [Model] water heater is used for replacement. All pipe works connecting to the heaters are replaced with stainless steel. A new approved stop and double check valves are employed in accordance with the manufacturer’s specification. Such will comply with PUB. Our Licensed has supervised and approved the installation. There is a 1-year warranty by Homeone for this installation on top of the warranty provided by manufacturer.

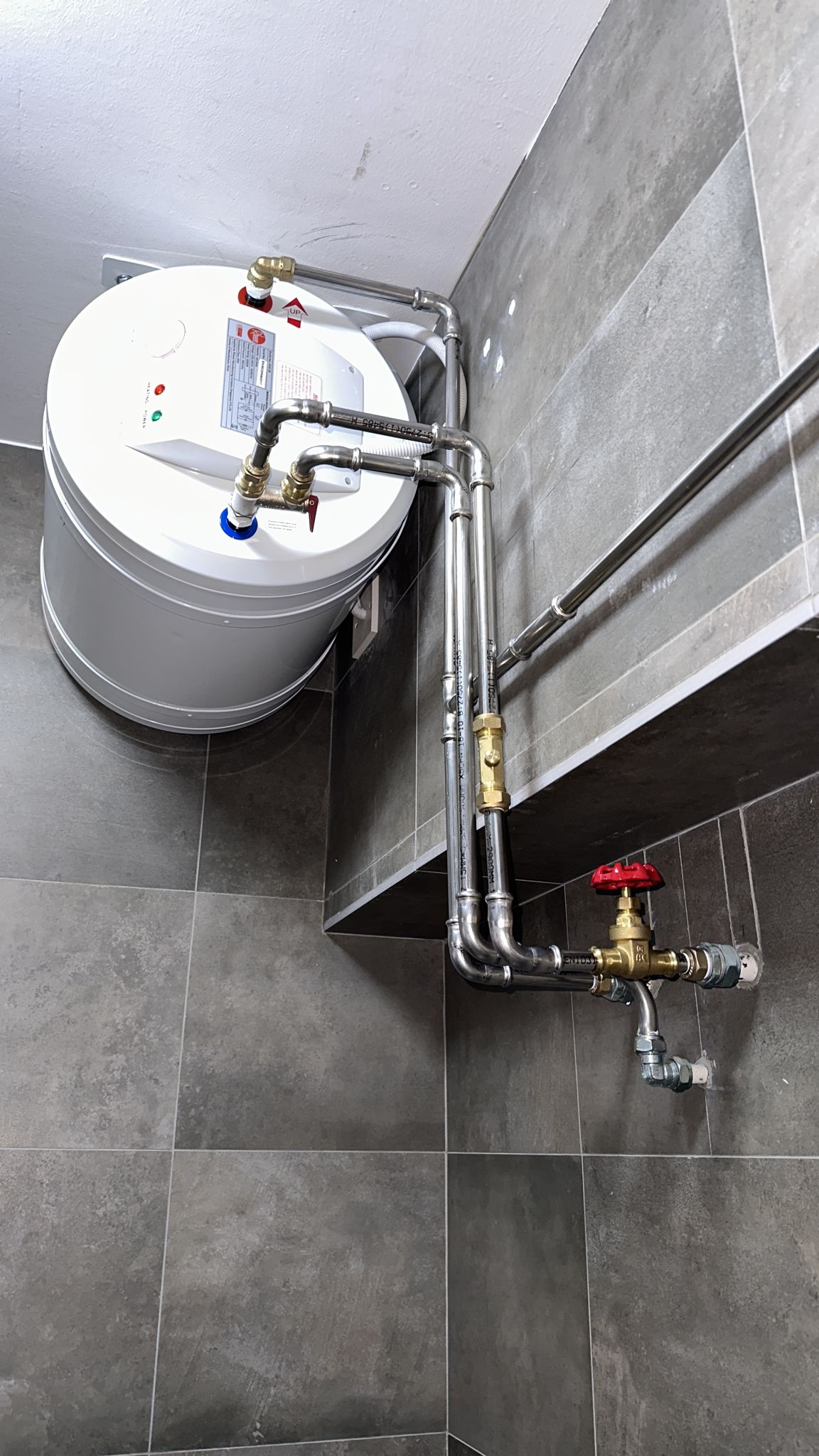

The final result

Ariston AN2 30 RS Water Heater Replacement

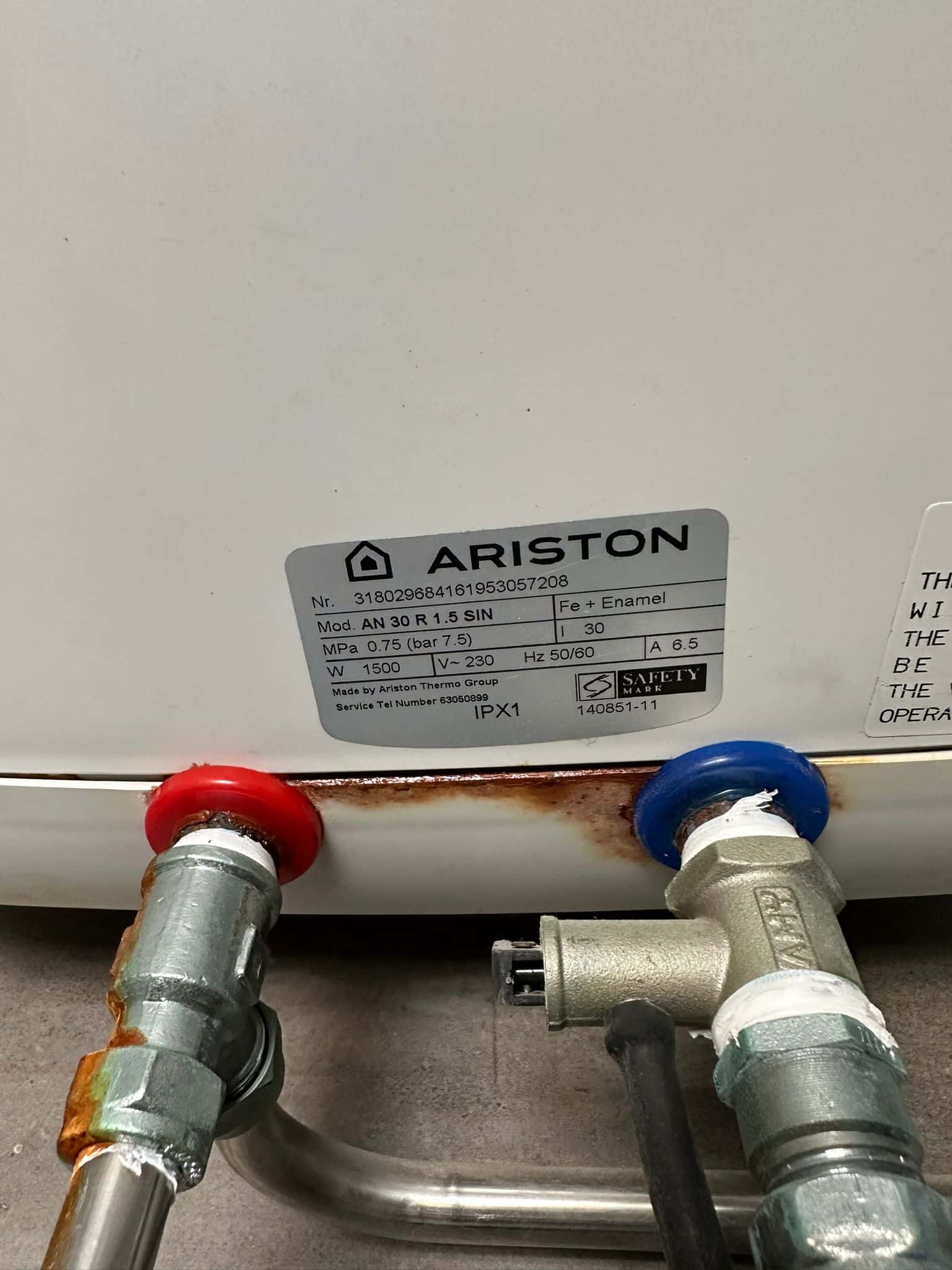

Old storage water heater:

Ariston AN2 30 RS Water Heater, Below the false ceiling

Ariston is a global leader in water heating solutions, offering a variety of innovative and energy-efficient products.
Originating in Italy, the brand focuses on quality, ease of installation, and sustainability.
Ariston’s range includes electric, solar, and gas water heaters, as well as heat pumps, delivering comfort and efficiency.
Committed to renewable technologies, it ensures reliable hot water with minimal energy consumption.

New storage water heater:

Rheem EHG-40 Water Heater

Rheem offers a wide range of water heaters, including electric, gas, hybrid heat pump, and tankless models, designed for energy efficiency and performance.
Their products are used in both residential and commercial applications, with features like glass lining for durability.
Rheem has been a leader in water heating since 1931, expanding globally after its 1925 founding by the Rheem brothers, originally producing steel drums.

This heater unit has met the following requirements for a water heater:

Work Scope:

1. Supply of tank, pipe and fittings
2. Removal of old tank
3. Pipe works partial redo to comply with PUB regulations
4. New tank installation
5. Testing and commission. Submission to PUB
6. Clean up before leaving
7. PUB approval letter

The electric water heater as a whole unit (i.e. parts incorporated in the water heater itself such as heating element, pressure relief valve/temperature relief valve, water tank, etc. shall be tested in accordance with the following:
1. AS/NZS 4020:2018 Appendix K – Sample extraction procedure for use with water heating system. An accredited or non-accredited test report for Appendix K is acceptable provided that the test laboratory is accredited by Singapore Accreditation Council (SAC) to AS/NZS 4020:2018 Appendix H on Extraction of Metals, at the point of testing;
2. The samples extracted in accordance with Appendix K shall then be tested in accordance with AS/NZS 4020:2018 Appendix H – Extraction of metals (for metallic materials in contact with water). The maximum allowable concentrations of metals listed in Table 2 of AS/NZS 4020:2018 shall not exceed the limits specified by the World Health Organization (WHO) Guidelines for Drinking Water Quality.

Reason for the Replacement: End of service life

Our licensed water service plumber has ensured that work is done in accordance with the conditions stated below:

All water service installations must be in accordance with the Public Utilities (Water Supply) Regulations, Singapore Standards 636 for Water Services and all other relevant statutory requirements.
The proposed works shall not adversely affect the existing water supply reticulation system.
Proposed water storage heater is installed in accordance with the specifications and requirements of the manufacturer. The installation of double check valves is safe and effective to prevent backflow and the back siphonage of water from the storage water heater through the heater inlet pipe and will be safe for use.

Ariston Canberra Crescent HDB Water Heater
